Grid Coupling With Spacer Tube
KUDOSWORLD SAS Grid Coupling with Spacer Tube is a full spacer, general purpose design ideal for pump applications.
Features a complete center section engineered to drop out for easy service of connected equipment bearings and seals

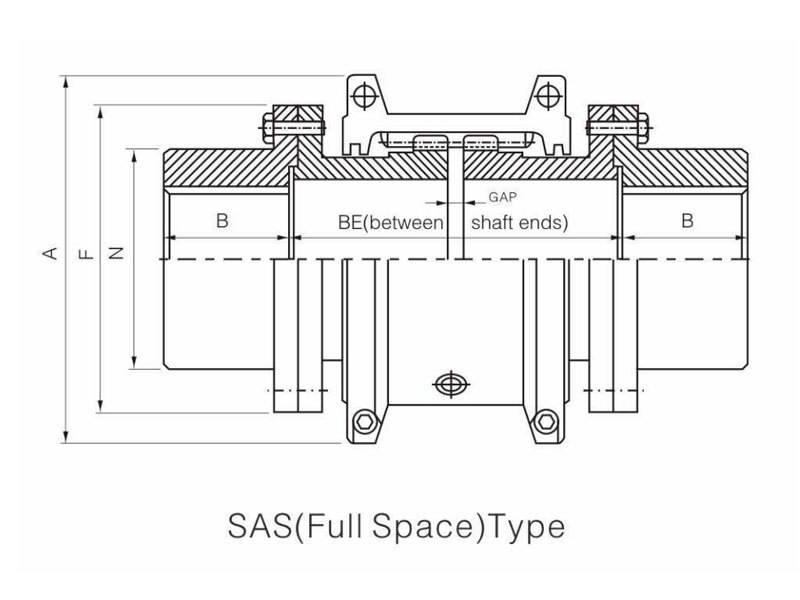

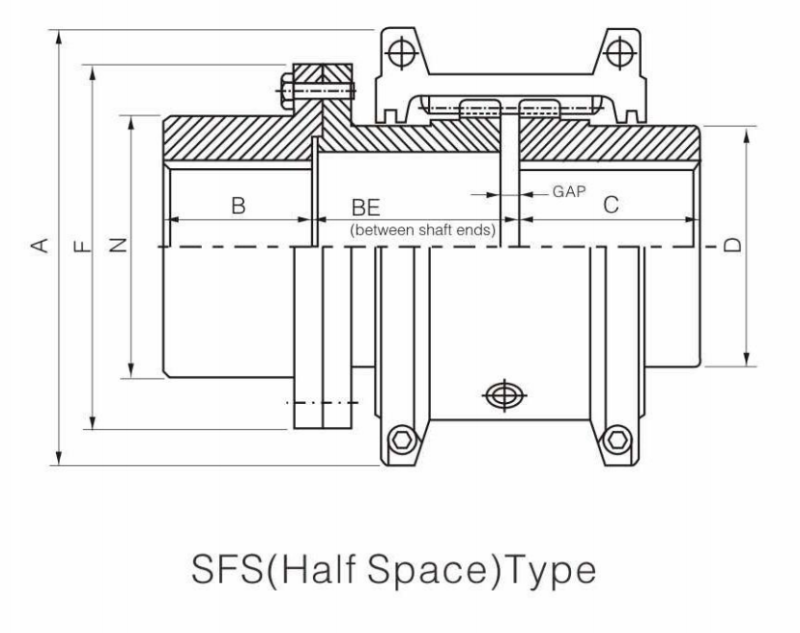

Available in 2 types（full spacer and half spacer）with both 23 sizes ranging from SFS20 through SFS240
- KUDOSWORLD
- GERMANY
- 6-8 WORKING WEEKS
- 2,000 SETS/YEAR
- Information
- Video
- Download
KUDOSWORLD SAS or SFS Grid Coupling with Spacer Tube
-Grid part 860-870℃ quenching and 300-450℃ tempering processed.
-Grid part anti-corrosion: Powder(blue) sprayed on the surface till evenly distributed and completely covered
-Hub material: SM45C
-Cover material: ALDC 12.1 (powder coating)
-Concentricity tested after CNC processing.
-Surface treated with anti-corrosion after processing and cleaning.
-Size checking after assembly
Specifications of Grid Coupling With Spacer Tube
Features of Grid Coupling With Spacer Tube:
1. The serpentine spring is used as the elastic element. It has strong elasticity and greatly improves the transmission torque of the serpentine spring coupling. It is widely used in heavy machinery and general machinery.
This kind of serpentine spring with special process has a long service life, allows high rotation speed, and has good compensation ability in axial, radial and angular directions
Grid coupling can withstand large torque, suitable for heavy machinery and general machinery occasions
2. High transmission efficiency and safe starting. The transmission efficiency can reach 99.47%, the short-term overload capacity is twice the rated torque, and the operation is safe;
3. Simple structure; easy disassembly and assembly, long service life;
4. The vibration reduction effect is good, avoiding resonance.
