Flexible Pin And Bush Coupling

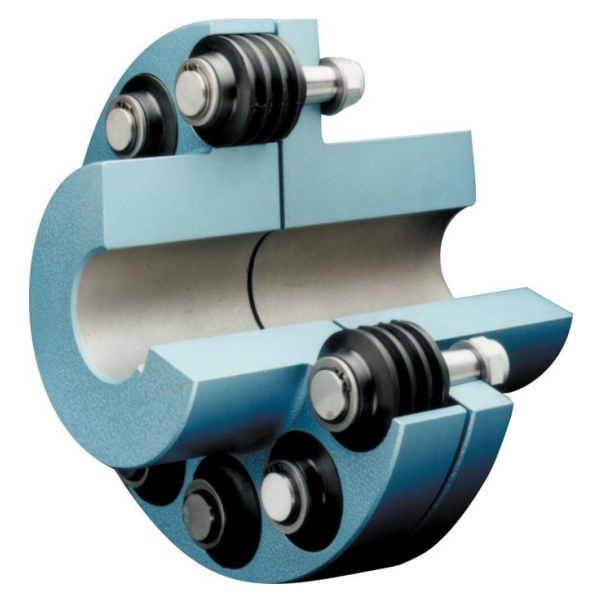

KUDOSWORLD Flexible Pin And Bush Coupling is a kind of transmission base part with simple structure, easy manufacturing, no lubrication, and convenient assembly and disassembly of elastic pin. It uses two half couplings with flange holes and non-metallic elastic pin placed on the crane to transfer torque, which is suitable for medium and low speed and medium and low torque occasions.
- Information
- Video
- Download
Technical features of KUDOSWORLD Flexible Pin And Bush Coupling
KUDOSWORLD Flexible pin type couplings are positive-locking, torsionally elastic, flexible shaft couplings with rubbery-elastic transmission elements. They are failsafe and pluggable
Buffer material and buffer geometry ensure an optimal balancing between resilience and restoring action as well as a good damping behavior.
Flexible pin type couplings are available in various series and designs
The assignment of driving and drive side is arbitrary. Due to the assembly, the pin coupling has a small circumferential backlash. After the installation of the coupling, it is required to align the drive as precisely as possible because the extent of the displacements have a decisive influence on the service life as well as on the restoring forces and torques.
The operating temperature range is between-40℃-25℃ ( If constructed of gray cast iron)and depending on the buffer material, up to + 100℃( + 120℃ are possible for a short time)
Flexible pin type couplings exhibit progressive spring characteristics
Buffer and bolts are interchangeable with those of earlier models. The selection of material for the pin and buffer components depends on the rotational speed. While gray cast iron can be used for low rotational speeds it is required to fall back on steel solutions in case of high speeds. Available as further constructive designs are welded designs. The constructive design( welded part or ductile iron) of steel is done by the manufacturer depending on the size.
There are two basic design types of KUDOSWORLD Flexible Pin And Bush Coupling.
Design A is horizontal installation, and Design B is vertical installation.
Design A/B standard design
Design P design with brake drum
Design S1 design with brake disk
Design S2 design with radially removable brake disk
Design H design with spacer

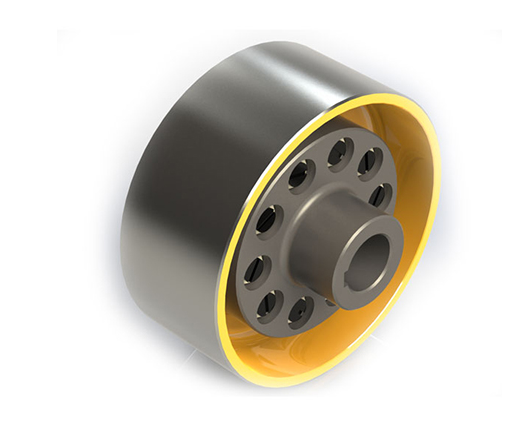

Type P —— Flexible Pin And Bush Coupling designed with brake drum.
Also type S —— Flexible Pin And Bush Coupling designed with brake disc.
Design S1：standard type
Dimensions and tolerances for e2 and f1 correspond to those of the Design A(assigned to the analog nominal size),brake disks with different dimensions upon request.
Design S2: design with radial dismountable brake disk
Dimensions and tolerances for e2 and f1 correspond to those of the Design A(assigned to the analog nominal size),break disks with different dimensions upon request.
Type H —— Flexible Pin And Bush Coupling designed with spacer.
Specia Designs
flexible pin type coupling : with spacer and brake disk
flexible pin type coupling: with spacer and brake disk
flexible pin type coupling: shiftble at standstill,buffers prestressed and electrically insulating,bolts hydraulically demuntable
