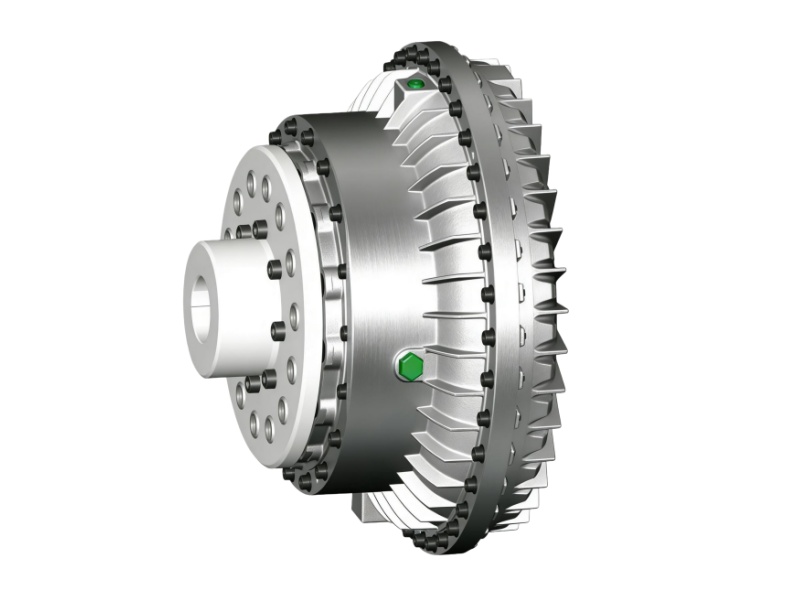

Hydrodynamic Coupling With Standard Delay Chamber

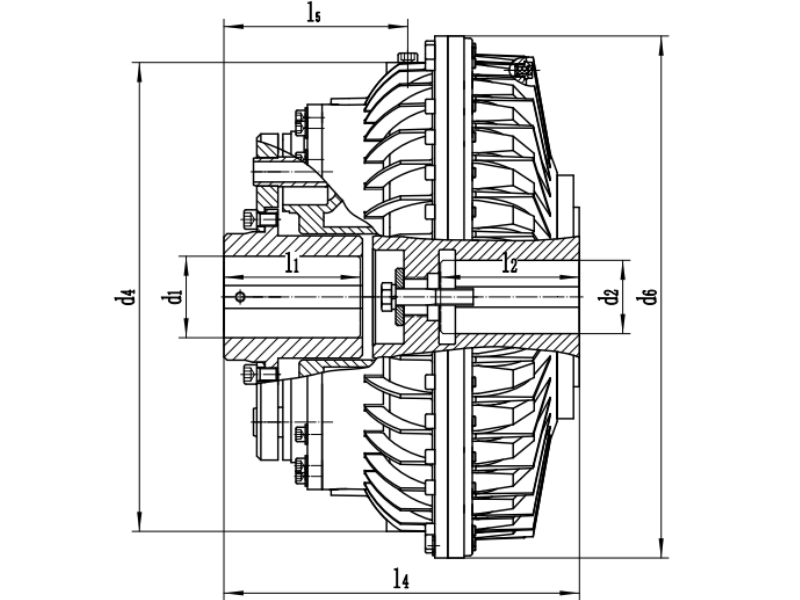

Specifications of Hydrodynamic Coupling With Standard Delay Chamber

Types of KUDOSWORLD Hydrodynamic coupling

Type HR

·Hydrodynamic coupling without delay chamber

Type HR-C

·Hydrodynamic coupling with delay chamber

Type HR-CC

·Hydrodynamic coupling with enlarged delay chamber

Type HR-D

· Hydrodynamic coupling with two hydrodynamic units

Type B

· Hydrodynamic coupling with brake drum

Ex)：HR-B, HR-CB, HR-CCB, HR-DB

Type S

· Hydrodynamic coupling with brake disc

Ex)：HR-S, HR-CS, HR-CCS, HR-DS

Type P

· Hydrodynamic coupling with pulley

Ex)：HR-P, HR-CP, HR-CCP

Type MRR

·Hydrodynamic coupling can be removed without moving both ends

·With flexible connecting coupling

Type MRW

·Hydrodynamic coupling can be removed without moving both ends

·Without flexible connecting coupling

Type MB

·The motor end bears the weight of the Hydrodynamic coupling

·With flexible connecting coupling

Optional Accessory

Water medium

The Hydrodynamic couplings can operate normally with water and glycol mixture as medium.

Water medium is more easy to purchase and meets high environmental requirements.

Hydrodynamic couplings with water medium need to add encapsulated devices such as oil seals or bearing sealing end caps to seal the bearings.

Rolling bearings do not need to be filled with oil, but only need grease to ensure service life.

When the water medium is used, the total length of the product will increase.

Balancing Test

Hydrodynamic couplings will be dynamically balanced. Standard balancing quality is Q6,3 at 1500rpm according to VDI 2060 in two planes.

***If you need to choose other balanced quality standards, please contact us.

Insert shaft sleeve

The use of the inserted shaft sleeve can meet the requirements of different shaft diameters and shaft lengths. The inserted shaft sleeve can be processed and shipped according to the user's requirements.

Fusible plug

When the liquid temperature exceeds the melting point of the fusible plug, the fusible plug is ejected. In this way, the Hydrodynamic coupling is protected from overheating. Fusible plugs have a variety of temperature options.

Mechanical thermal switch device

The mechanical thermal switch is set with a lower temperature than the fusible plug to provide secondary protection for Hydrodynamic coupling. When the temperature of the temperature control plug of the mechanical switch is reached, a mechanical signal will be sent from the top of the temperature control plug. After the signal is obtained, the drive system will be cut off.

Electronic thermal switch device

Similar to the mechanical switch, it is a secondary protection for Hydrodynamic coupling from overheating. When the Limit temperature is reached, the sensor will send an electronic signal to the analysis unit and converted into another signal to cut off the drive system.

Protective cover

It is necessary to install a protective cover in order to avoid unintentional contact with the rotating elements of Hydrodynamic couplings. The manufacturing of the protective cover fully considers the cooling of the coupling through air circulation. We can provide standard protective cover or special designs according to customer requirements.
