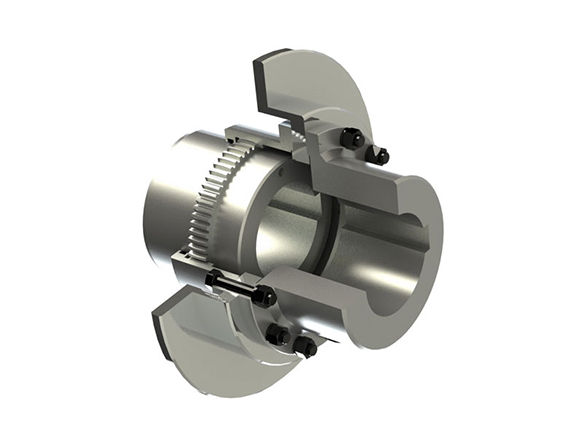

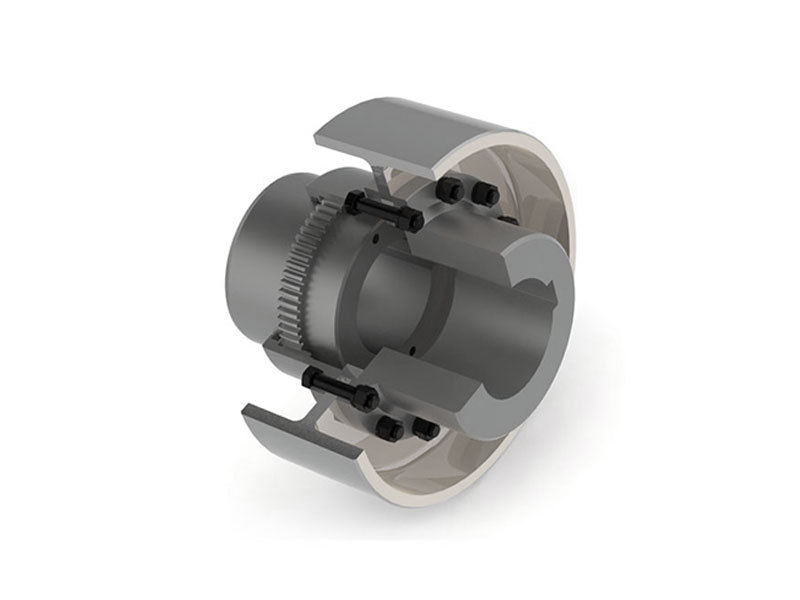

Gear Coupling With Brake Drum Or Disc

1. KUDOSWORLD Gear Coupling With Barke Drum Or Disc are used for applications such as cranes, hoists, and conveyors among others.
2. Gear Coupling With Brake Drum Or Disc accommodate misalignment between connected equipment and eliminate the need for double shaft extensions on motors and gear drives for applications requiring brakes.
3. Double engagement KUDOSWORLD Gear Coupling With Barke Drum Or Disc are available in 10 sizes ranging from 140 through 400. Single engagement KUDOSWORLD Gear Coupling With Barke Drum Or Disc are available in 8 sizes ranging from 15G through 50G.

  • KUDOSWORLD
  • GERMANY
  • 4-6 WORKING WEEKS
  • 2,000 SETS/YEAR
  • Information
  • Video
  • Download

Introduction of Gear Coupling With Brake Drum Or Disc:

Gear coupling is a kind of flexible coupling. A gear coupling is a mechanical device designed to transmit torque between two shafts that are not collinear. Couplings usually consist of two flexible joints, one fixed to each shaft. These joints are usually connected by a third shaft called the main shaft.

Gear couplings, commonly referred to as gear couplings, are a form of coupling commonly used in high torque, high power applications. Gear couplings can typically handle higher torques than universal joints, which produce less vibration. Gear couplings consist of two hubs with external and internal teeth and one or two-piece sleeves.

Gear couplings have a general misalignment capability of 0.01-0.02 inches parallel and 2 degrees angular. They are sometimes used in pairs to bridge the gap between the driving and driven machinery. They usually require a lubricant, but some are designed for light duty use and use lube-free nylon or other polymers as the center sleeve.

Double engagement KUDOSWORLD Gear Coupling With Brake Drum are available in 10 sizes ranging from 140 through 400.

Single engagement KUDOSWORLD Gear Coupling With Brake Drum are available in 8 sizes ranging from 15G through 50G.

Want to know more about 'Double or Single engagement KUDOSWORLD Gear Coupling With Brake Disc' Please contact with our manager.

Gear Flex Coupling


Features of Gear Coupling With Brake Drum Or Disc:

Gear coupling has radial, axial and angular axis deviation compensation ability, and has the advantages of compact structure, small turning radius, large bearing capacity, high transmission efficiency, low noise and long maintenance period.

Exchange With German Technicians

Kudosworld Transmission Equipment Co., Ltd has always focused on enterprising spirit, down-to-earth attitude, pursuit of excellence, and maintain a good reputation by providing excellent products and services.

Gear Flex Coupling



Delivery Time

Payment method: prepayment + delivery payment, special prepayment discount for agents and old customers,

Delivery: According to different product types and order quantities, small models can be delivered in 4-6 weeks, and large models can be shipped in 10-12 weeks

Shipping method: sea, air, international express (small model + small quantity), support EXW, FOB, CIP and other ITEM

Tooth Coupling

Brake Drum or Disc Gear Coupling
